NVR

Video & Audio

Video Compression

H.264+/H.264/H.265/H.265+

IP Video Input

16CH PoE

Video Output

HDMI up to 4K, VGA up to 1080p

Audio Input/Output

1/1 RCA

Incoming/Outgoing Bandwidth

160/80 M

Max. Recording Resolution

Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera)

Max. Playback Resolution

Up to 8MP (3840 X 2160)@30fps(Frame rate depends on IP camera)

Max. Playback Channel

16CH

Max. Playback Capacity

1-ch@8 MP (30 fps)/3-ch@4 MP (30 fps)/6-ch@1080p (30 fps)

Hard Drive

HDD

2 SATA Interface

HDD Capacity

Up to 8 TB Capacity for each disk

External Interface

Network Interface

RJ45 X1 (10/100/1000 M)

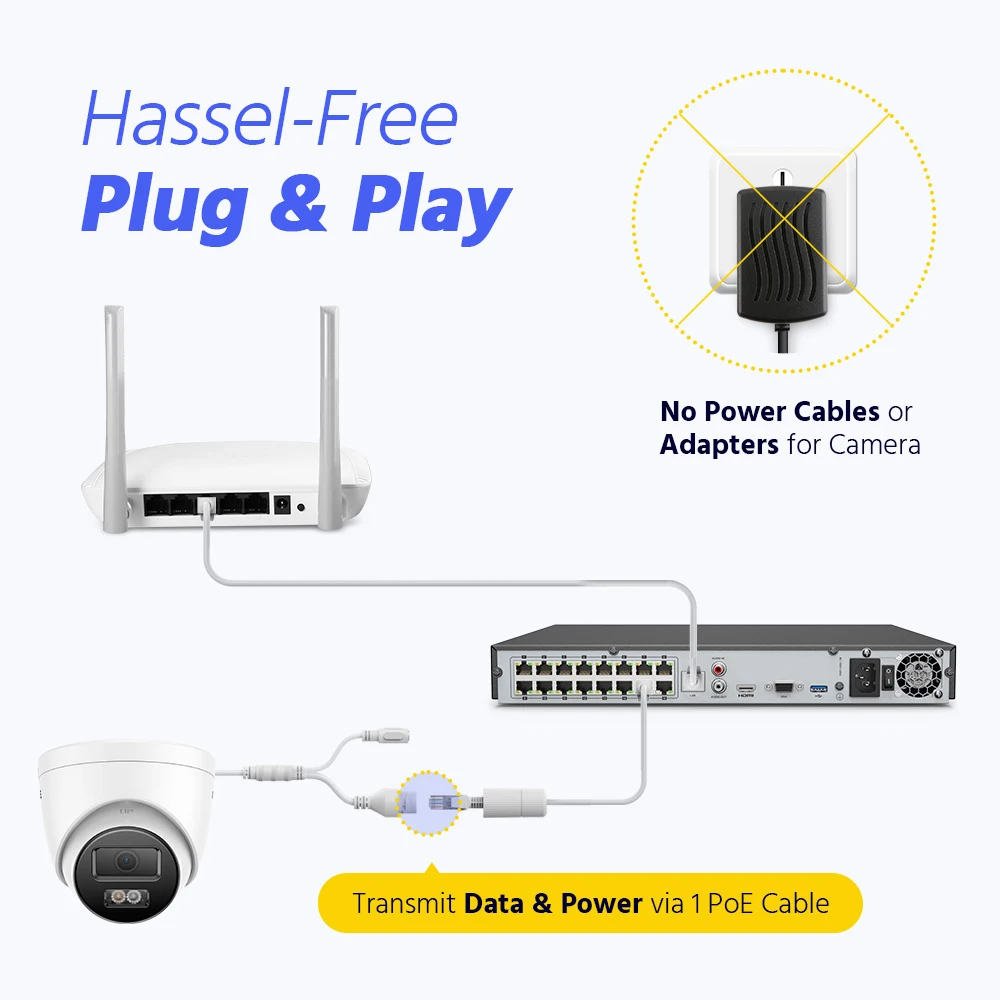

PoE

16, RJ-45 10/100 Mbps self-adaptive Ethernet interface, IEEE 802.3 af/at

USB

2X USB 2.0

Smart Function

Deep learning

16-ch Human and vehicle targets detection(Need IP camera support)

4-ch Human and vehicle targets detection(IP camera does not need to support this function but the resolution cannot exceed 4MP)

Smart Event

Line crossing detection, intrusion detection, region entrance detection, region exiting
detection(Need IP camera support)

General

Operating Power

AC 100-240 V

Power Consumption

≤15 W (Without HDD and PoE)

PoE: Max. 25.5W for Single Port

Working Temperature

14 °F — 131 °F/-10 °C — 55 °C

Dimensions (W X H X D)

15.2” X 12.4” X 2.0”/385 X 315 X 52 mm

Weight (Without Hard Disk)

6.6 lbs./3 kg

IPCamera

Camera

Image Sensor

1/3" Progressive Scan CMOS

Max resolution

3K(3072*1728), 16: 9 picture ratio is more suitable for the most popular display

Main Stream

50 Hz: 20 fps (3072*1728), 25 fps ( 1920 X 1080, 1280 X 720)
60 Hz:20 fps (3072*1728), 24 fps ( 1920 X 1080, 1280 X 720)

Substream

50 Hz: 25 fps (1280 X 720,640 X 480, 640 X 360)
60 Hz: 24 fps (1280 X 720,640 X 480, 640 X 360)

Video Compression

Main stream: H.265+/H.265/H.264+/H.264
Sub-stream: H.265/H.264/MJPEG

Video Bitrate

32 Kbps - 6 Mbps

Audio Compression

G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC

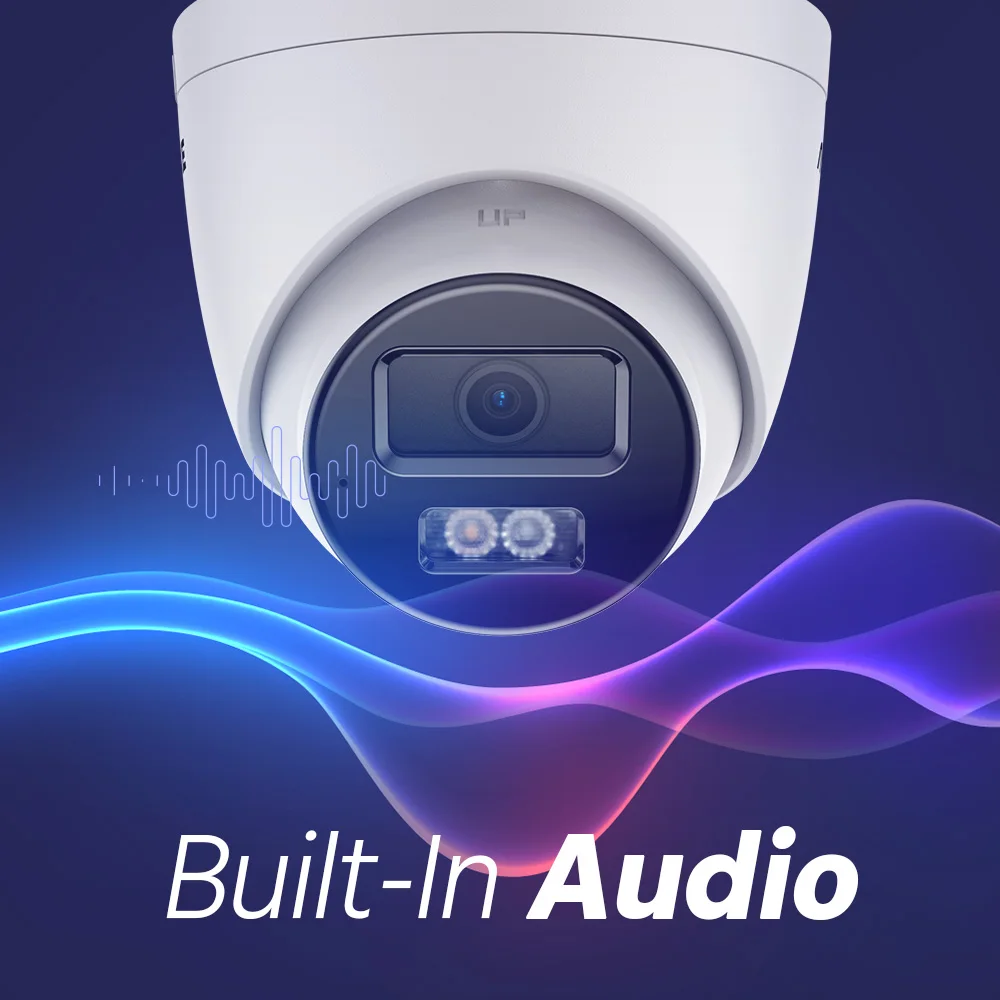

Audio Input

Built-in Microphone, record with audio

Lens

2.8 mm

Min. Illumination

Color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR

Angle of View

Horizontal FOV 98°, vertical FOV 54°, diagonal FOV 114°

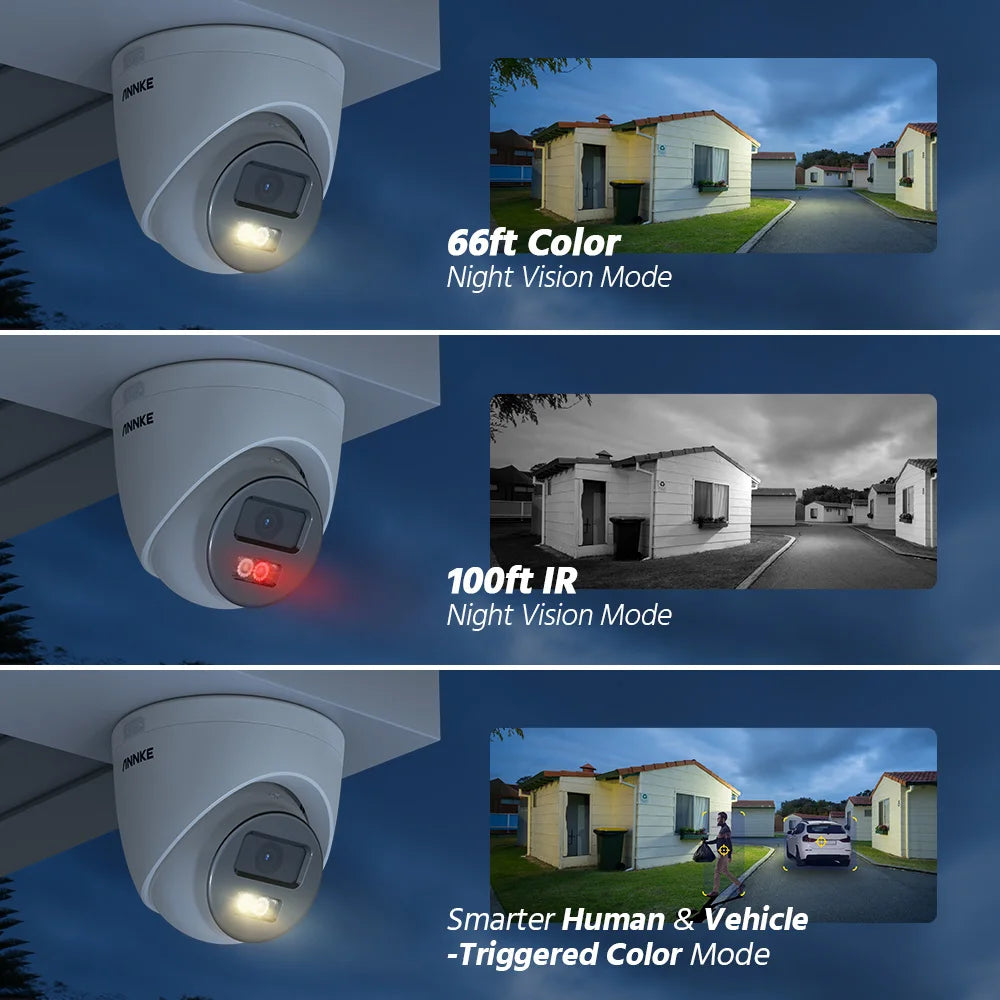

Supplement Light Type

Smart Dual-Light, IR, White Light

Supplement Light Range

IR: up to 30 m, wite Light: up to 20 m

Motion detection 2.0

Supoort, include Human & Vehicle detection

Image Enhancement

BLC, HLC, 3D DNR

Wide Dynamic Range

120 dB WDR

Protocols

TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, NTP, IGMP, IPv6, UDP, QoS, FTP, SMTP

API

Open Network Video Interface Version 18.12

Region of Interest (ROI)

1 fixed region for main stream

Privacy Mask

4 programmable polygon privacy masks

General Function

Mirror,rotate,password protection, remote access

Ethernet

1 RJ45 10 M/100 M self-adaptive Ethernet port

General

Housing

Metal & Plastic

Color

White & Black

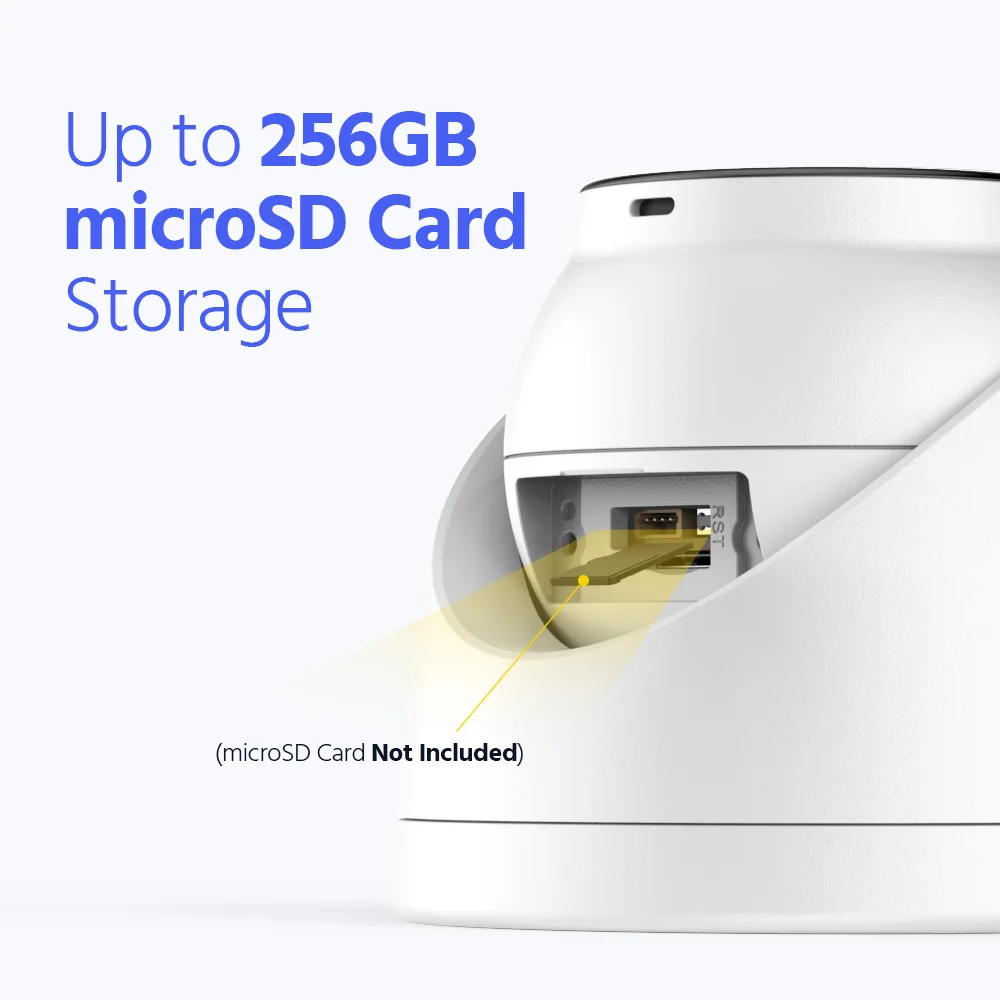

Storage

Built-in microSD/SDHC/SDXC Slot, up to 256 GB

Hardware Reset

Yes

Operating Power

DC 12 V± 25%, max. 5 W; PoE (802.3af), max. 6.5 W

Operating Temperature

-22 °F – 140 °F/-30 °C – 60 °C

Indoor/Outdoor Use

Indoor/Outdoor

Interface Protection

IP67

Dimension (L X W X H)

170.8 mm × 66 mm × 69.1 mm (6.7" × 2.6" × 2.7")

Weight

0.6 lb./270 g
