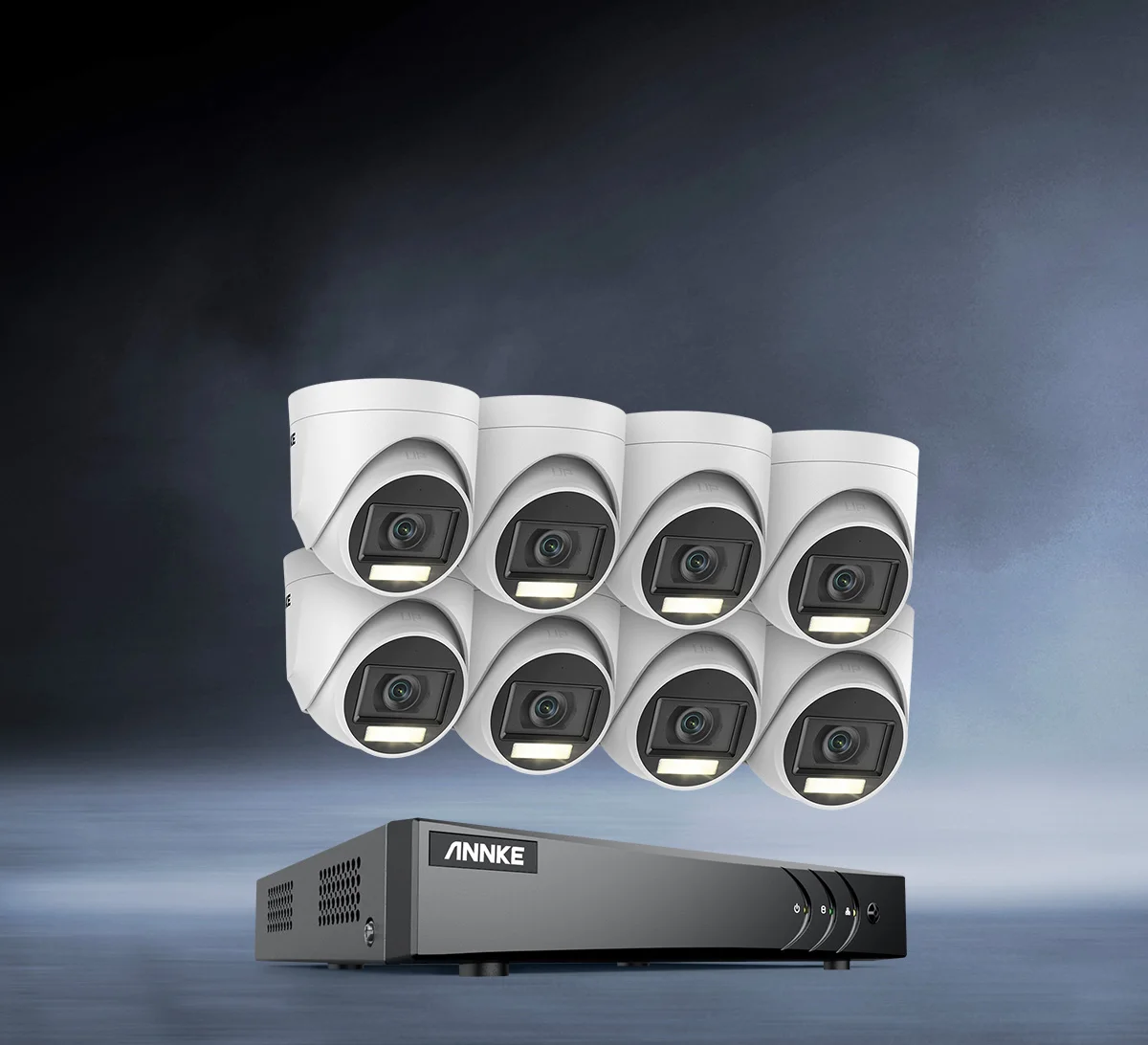

DVR

Video & Audio

Video Compression

H.264+/H.264/H.265/H.265+

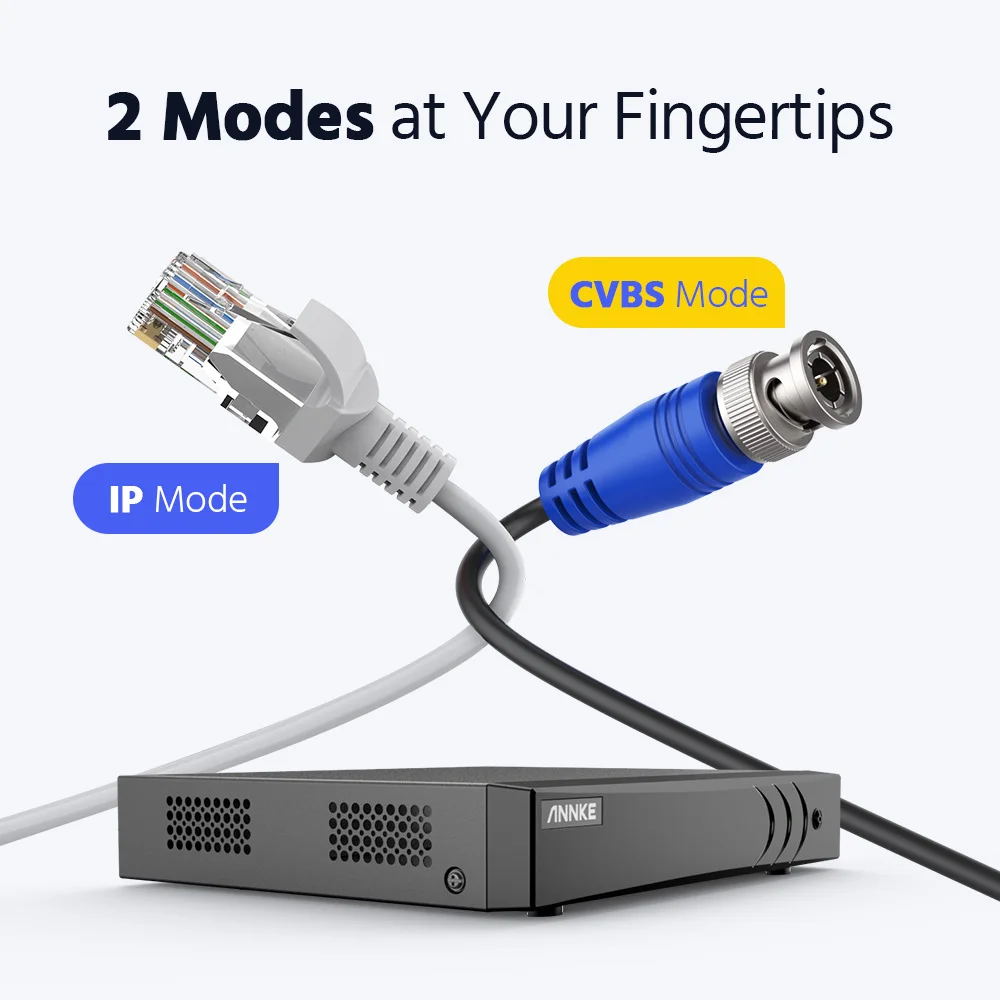

Video Input

8CH Analog HD/Analog + 2CH IP Video (up to 12 channel when IP enhanced mode on)

Video Output

HDMI and VGA Up to 1080P

Audio Input

1-ch RCA,8-ch via coaxial cable

Audio Output

1-ch RCA

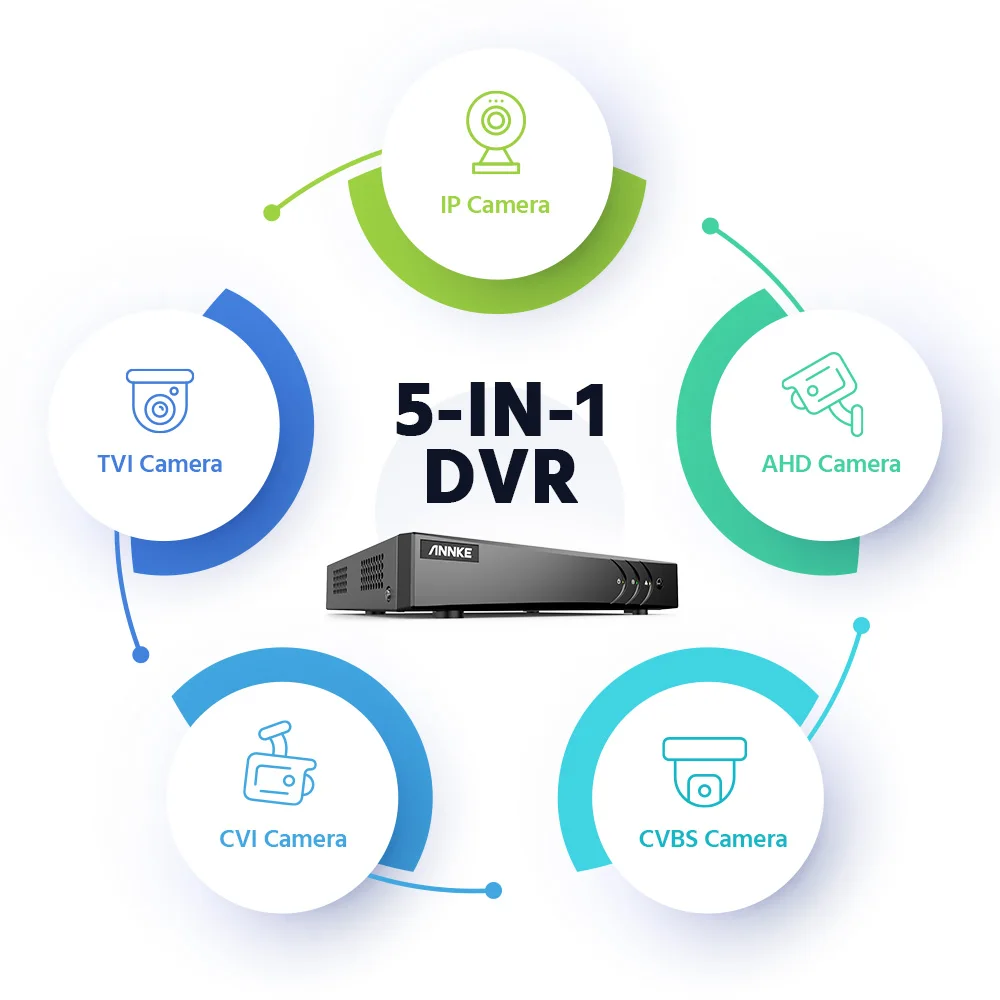

Supported Camera Types

Support HD TVI Input: 3K/5MP@20FPS, 4MP, 3MP, 1080p, 720p;
Support AHD Input: 4MP, 1080p, 720P;
Support CVI Input: 4MP, 1080p, 720P;
Support CVBS Input;
Support IP Video Input：6MP/5MP/4MP/3MP/1080P/720P

Analog HD Playback Resolution

3K Lite/5MP Lite/4MP Lite@12fps,1080p/720p@15fps

IPC Playback Resolution

Up to 6MP

Max Playback Channel

2-ch

Protocols

TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS

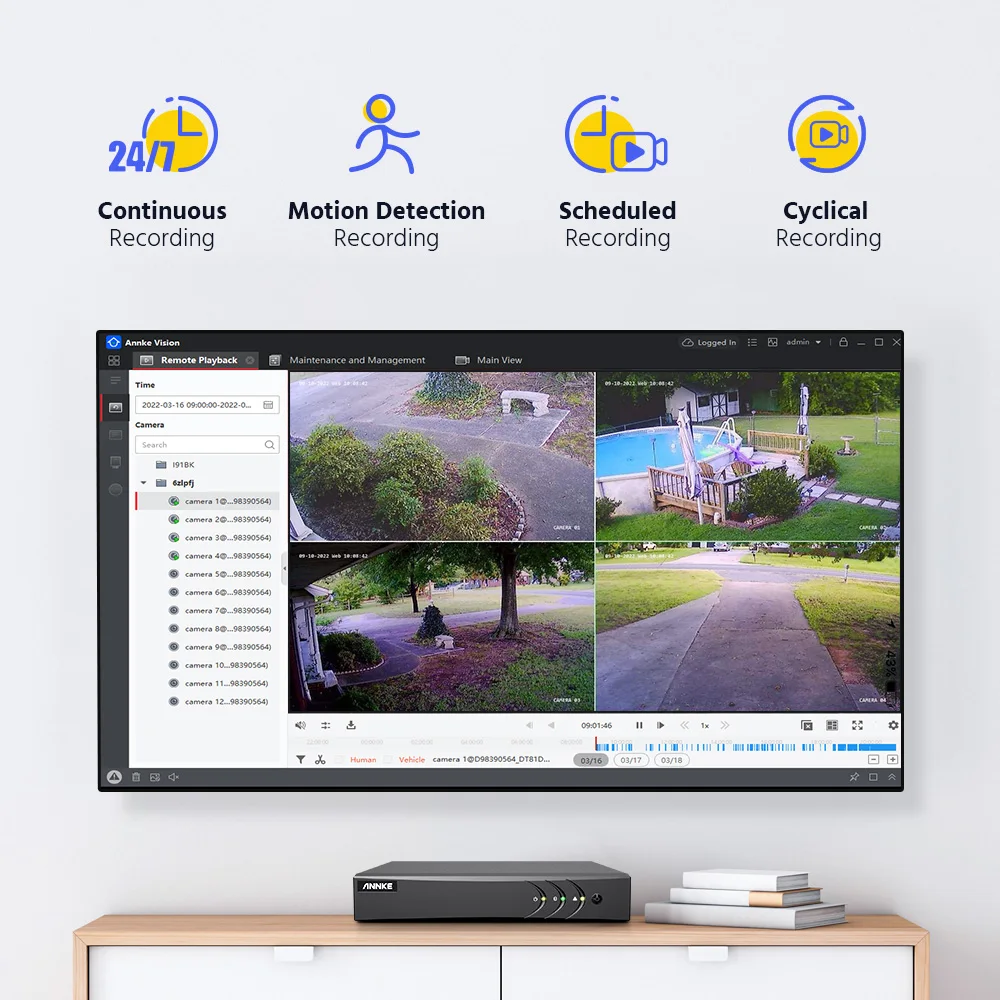

Motion Detection 2.0

All analog channels support human and vehicle detection to reduce false alarm

Hard Drive

HDD

1 SATA interface

HDD Capacity

Up to 10TB capacity

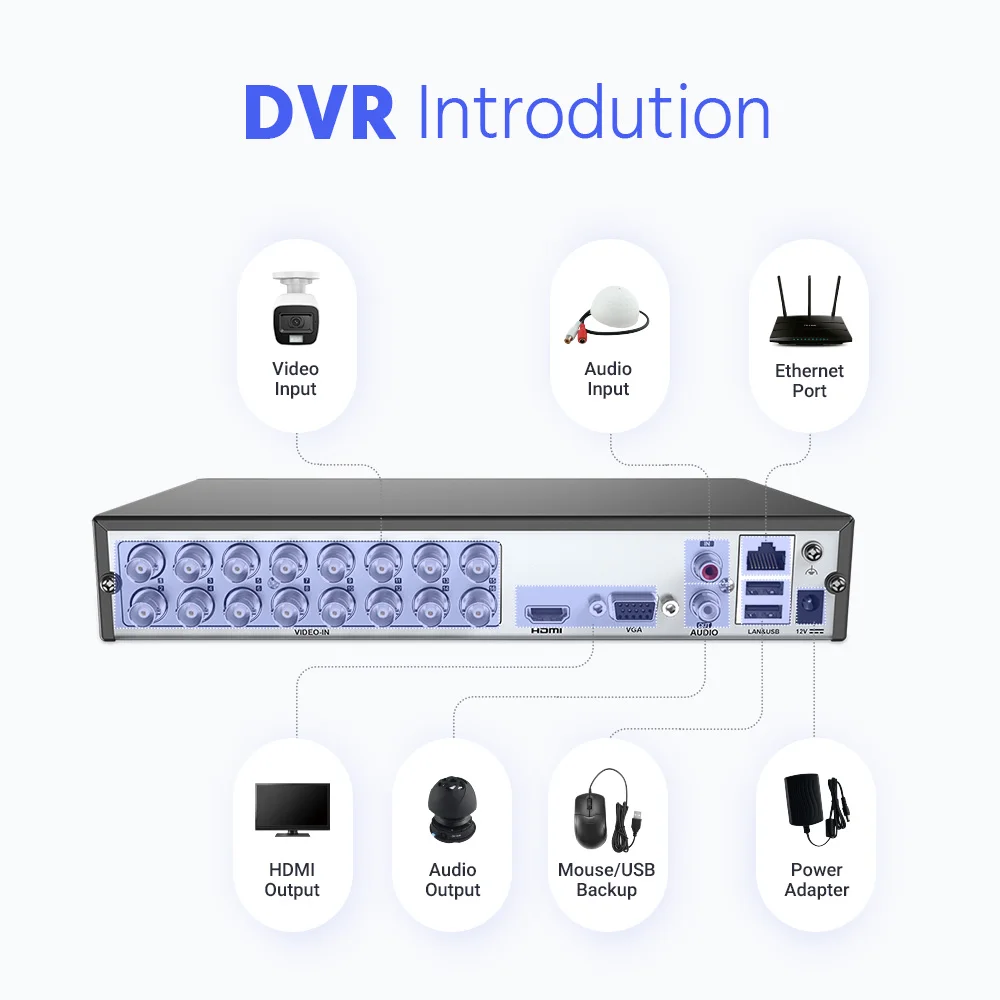

External Interface

Network interface

1, RJ45 10M/100M self-adaptive Ethernet interface

USB

USB2.0x2

General

Operating Power

DC12V,≤ 12W (without HDD)

Working Temperature

-14 °F – 131 °F /-10 °C – 55 °C

Dimensions(W x H x D)

260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)

Weight (without hard disk)

≤ 1 kg (2.2 lb)(without HDD)

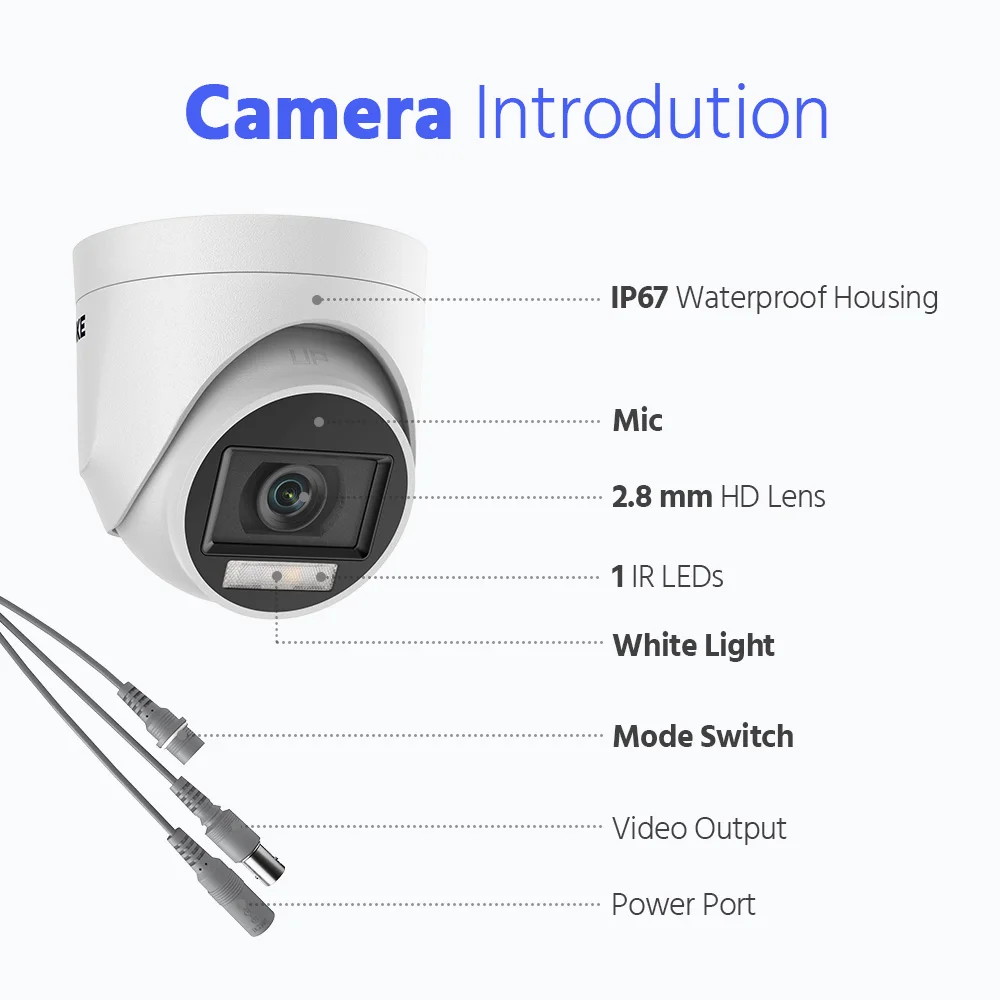

Analog HD Camera

Camera

Image sensor

3K CMOS Image sensor

Video Resolution

2960 (H) × 1665 (V)(16:9)

Signal System

PAL/NTSC

Frame Rate

TVI: 3K@20 fps, 4 MP@25 fps/30 fps, 1080p@25 fps/30 fps
AHD: 5 MP@20 fps, 4 MP@25 fps/30 fps
CVI: 4 MP@25 fps/30 fps
CVBS: PAL/NTSC

Lens

2.8mm

Min.Illumination

Color:0.01 Lux @ (F1.2,AGC ON),0 Lux with IR

Angle of View

Horizontal FOV: 107°, vertical FOV: 64°, diagonal FOV: 129°

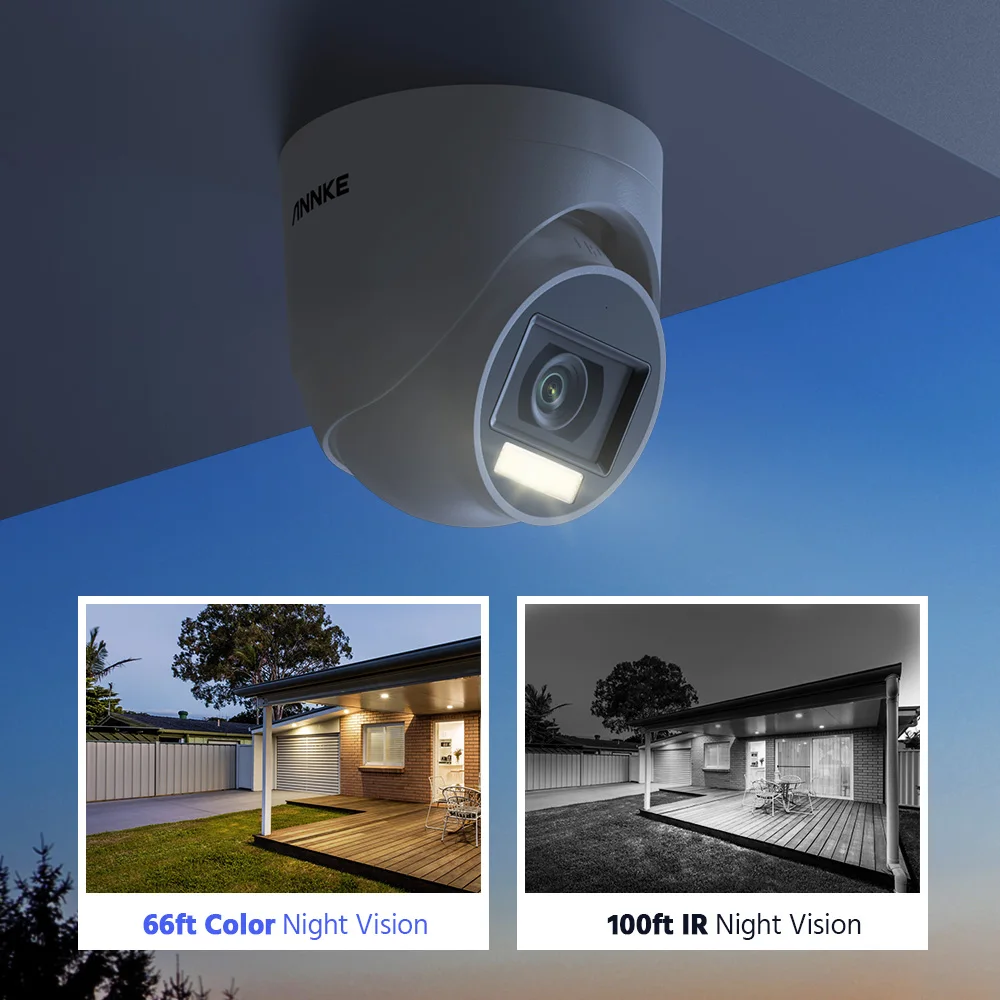

Supplement Light type

1 white Light & 1 EXIR

Supplement Light Range

IR : Up to 30 m, white Light : Up to 20 m

Supplement Light Mode

IR light works normally, and it switches to white light when human or vehicle are detected at night.

Wide Dynamic Range

Digital WDR

Audio

Built-in mic

IR Cut Filter

Yes

Video Output

BNC, switchable TVI/AHD/CVI/CVBS

General

Housing

Matal & Plastic

Color

White

Operating Power

12 VDC ± 25%

Consumption

Max. 2.9 W

Operating Temperature

-40 °F – 140 °F /-40 °C – 60 °C

Indoor/Outdoor

Indoor/Outdoor

Weatherproof Rating

IP67

Dimension (L x W x H)

80 mm × Ø 85.1 mm (3.1" × Ø 3.4")

Weight

Approx. 300 g (0.66 lb.)
