240 X 240 RESOLUTION PROFESSIONAL HANDHELD THERMAL IMAGER CAMERA
240 X 240 RESOLUTION PROFESSIONAL HANDHELD THERMAL IMAGER CAMERA
SPECIFICATIONS
Certification: CE, FCC, RoHS
High-Chemical Concerns: None
Handheld Thermal Imaging Camera-HX1: 240×240IR Resolution, -20~550C, 15 Color Palette, PC Analysis Software, Industrial Tester
BSIDE HX1 is a Novel Handheld Thermal Imaging Camera that Integrates Temperature Measurement and Imaging Capabilities.
Equipped with an IR Resolution of 240×240 and a 2.4-inch Display, the HX1 offers 15 Pseudo-Color Modes with High Accuracy.
With IR Resolution 240×240, 2.4-inch Screen, 15 Pseudo Color Modes with High Accuracy, High and Low Temperature Alarm, Adjustable Emissivity Data Storage, and Export Temperature Analysis of Stored Pictures is Possible.
Also comes with a High-Quality EVA Handbag.
Main features of HX1
IR resolution: 240 × 240
Screen: 2.4-inch LCD screen
Frame rate: 25Hz
15 Pseudo Color Modes
Temperature Measurement Range: -20 °C~550 °C

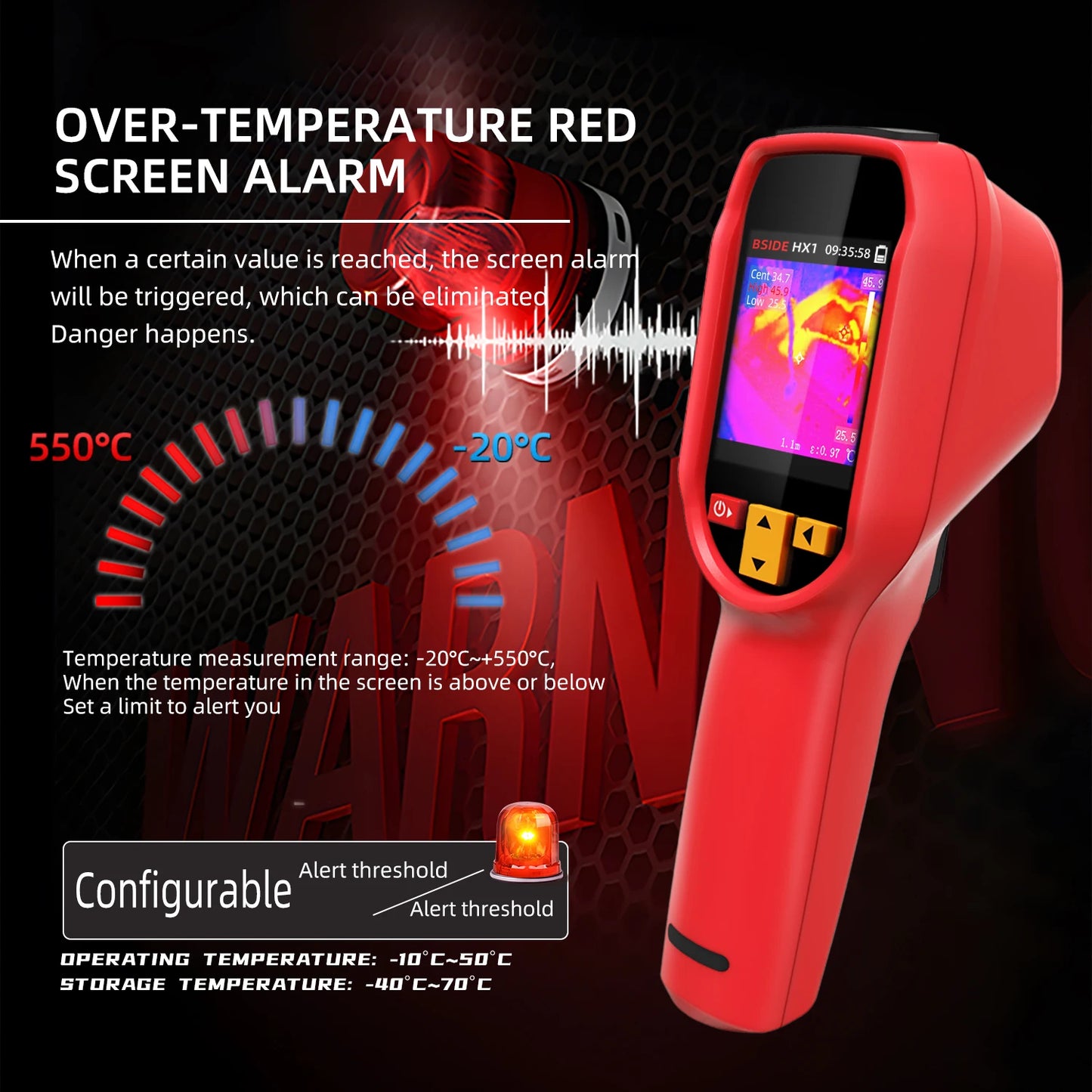

High and Low Temperature Alarms: image, buzz, LED flashing
Laser Indicator/LED Illumination Laser Indicator/LED Illumination
Emissivity: 0.01~1
Storage: 4GB Built-In TF Card
Adjustable Emissivity
Power Supply: 2500mA Lithium Battery
Three-Proof Design: IP54/1.5m Anti-Drop
The Bottom Design has Screw Holes for Use With a Tripod
Performance Indicators |
|
|
Sensor type |
Vanadium oxide (VOx) microcalorimeter |
|
Response Band |
8~14pm |
|
Thermal image resolution |
240x240 Pixels |
|
Noise equivalent temperature difference(NETD) |
≤60 mK(@25°C,F#1.0) |
|
Angle of view(FOV) |
50.0°(H)×50°(V)/72.1°(D) |
|
Spatial resolution (IFOV) |
8.89 mrad |
|
Frame rate |
25Hz |
|
The focal length of the |
1.35 mm |
|
Temperature measuring focal length |
0.3m~3m Adjustable |
|
Temperature range |
-20℃~550℃ |
|
Accuracy of temperature measurement |
±2℃ or±2%of the reading |
|
Unit of temperature measurement |
Celsius,Fahrenheit,Kelvin |
|
Temperature resolution |
0.1℃ |
|
Emissivity |
0.01~1.00 Adjustable |
|
Temperature measurement shows |
Center point temperature measurement, |
|
Swatches |
White Hot,Black hot,Fusion 1,Rainbow, Bark brownColor 1,Color 2, lce fire,Rain,Green hot, |
|
Display screen |
2.4 inches TFT LCD |
|
Display resolution |
320×240 |
|
Key |
Power Key,up key,Down Key, |
|
LaserPointer |
Yes |
|
Temperature Alarm |
Screen font color alarm |
|
Image storage |
Built-in memory card |
|
Number of image files |
30000 |
|
Image format |
BMP |
|
Shock/vibration |
GB/T 2423.5-2019;GB/T2423.10-2008 |
|
Electromagnetic compatibility(EMC) |
GB/T17799.2,GB17799.3-2012 |
|
Protection level |
IP54 |
|
Installation mode |
Tripod mount UNC-20 |
|
Focus mode |
Auto focusing |
|
Hardware interface |
Type-C USB |
|
Battery type |
Rechargeable lithium battery |
|
The working hours of the battery |
>7h@25℃ |
|
Charging time |
<3h@25°℃ |
|
Charging |
5V/2A |
|
Boot speed |
~8 seconds |
|
Automatic shutdown |
Diable(default) |
|
Operating temperature |
-10°C~50°C |
|
Storage temperature |
-40°C~70°℃ |
|
Working humidity |
≤85%RH(Non-condensing) |
|
Drop |
1.5m |
|
Product dimensions |
193.4*59.4*77.4mm |
|
Product weight |
277g |
